Introduction to Field Flare Piping Lined Piping, Pipe Spools / Spacers

Field flaring is a method by which finished pipe spools can be manufactured to length on site.

The method is typically used for producing emergency spools in the case of a plant breakdown or for the convenience of small scale maintenance. However, it can also be used to produce the final “closing” spools for project work.

Field flaring is occasionally used on site as a preferred method for producing all of their spools, usually for historic reasons or a geographic need to be very self-sufficient.

Manufacturing PTFE lined spools on site

It is important to be aware of the downside of choosing to adopt field flaring as a site practice to manufacture PTFE lined spools on site.

  1. It is likely that the field manufactured spools are more expensive than factory finished spools. This is because the site work can never be as efficient as factory production and there is more materials wastage.
  2. The spools are not produced in a clean controlled factory environment with the level of process control that the factory can provide, nor can the traceability of materials be maintained easily.
  3. The field flare is only as good as the operator and the equipment he is working with.

However, it can still be a very useful method to have available. Standard sizes for field flare are 1in to 6in.

Advantages and disadvantages

The diagram below shows the number of method choices with advantages and disadvantages.

Spool Types

A tight fit liner system and a sliding fit liner system are the two types of pipe spool that can be used for field flaring.

They have arisen from historic manufacturers specifications and tend to be customer site specific driven by their lined piping vendors. If you are new to field flaring, then you can make your own choices and the notes below will indicate the pro’s and con’s for each system and the flaring methods.

Tight Fit Liner System

These are manufactured specially for field flare use, because of the need to have vent holes in any spool that is produced as a result of field flaring. Because of the potential damage to the liner, it is not possible to drill vent holes on site.

To guarantee that any spool made from it has at least one vent hole, a spool type is available with vent holes drilled regularly along the length of the pipe; our specification ES1067. Whilst it is possible to use a standard factory finished spool to make a shorter tight fit field flare spool by cutting it up, it is essential to ensure that there is at least one vent hole in the spool piece to be used.

Advantages

Tight fit liner spools work in all climatic conditions and will provide the same vacuum performance as a factory made spool.

Disadvantages

Threaded flanges only can be used in the field, as it is not possible to weld onto the spool with liner inside. Similarly it is not possible to fit lugs, studs, vent bosses or any sort of mounting bracket in the field. Also it is necessary to have a pipe threading and parting off machine in order to prepare the spool for flanging and flaring.

CRP manufactures special “companion flanges “for use with these spools. This not only provides the correct radius for flaring across at the flange face, but as importantly avoids the potential for a step between the pipe id and the flange id, which can be a stress raiser for the PTFE and cause premature failure.

Sliding Fit Liner System

Sliding fit liner systems are manufactured specifically for field flare use and cannot use standard factory spools. Standard factory spools have liners fitted which are an interference fit with the steelwork – this provides support under vacuum conditions.

The sliding fit liner is exactly the same as our factory finished spool liner. However, the lined pipe spools go through a special size setting heat treatment cycle, prior to being dispatched. This makes the liner smaller in diameter, allowing them to be removed on site to allow the steelwork to be fabricated and the liner reinserted.

Advantage

The sliding fit liner system makes it easier to fabricate spools on site using welded, threaded or Van Stone flanging. Once reinserted the PTFE liner has a tremendous memory and will recover in the presence of heat back to its original diameter to provide vacuum resistance.

Disadvantage

In warm or hot climates – even the UK – the liners will recover over time and become difficult or impossible to remove from the steel pipe.

Different types of heat set sliding fit liner

There are three types of heat set sliding fit liner, varying by their flange configuration. These types are:

  • ES1048 (plain end spool-no flanges)
  • ES1051 (Van Stone flanging one end)
  • ES1038 (welded stub end with rotating flange).

We would recommend having one end flanged (ES1051 or ES1038) as it makes the production of the field flare quicker and less expensive

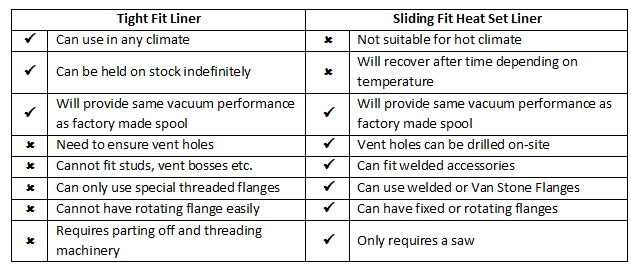

Summary of Advantages and Disadvantages of Liner Types

flare

Field Flare Equipment

We manufacture two styles of field flare equipment, which each have their advantages and disadvantages.

Heated Tool Expanding Mandrel Flaring

The Heated Tool Expanding Mandrel flaring system can work with either tight fit or sliding fit liners.

How it works

  1. The system works by first inserting an expanding mandrel into the bore of the liner to be flared.
  2. This presses the liner out to the inside of the steel pipe and provides a threaded part onto which the tooling can be mounted.
  3. The flaring operation is carried out using aluminium flaring heads that have been heated indirectly either using a gas burner or gas torch, electric hot plates, or a gas or electric oven.
  4. The flaring heads are supported on the expanding mandrel and are then slowly pressed onto the exposed PTFE allowing the heat from the flaring head to sink into the PTFE and allow it to be flared.

Advantage

This type is quite cost-effective in terms of equipment.  It is possible to buy individual kits for each nominal bore of 1in, 1.1/2in, 2in, 3in and 4in.

Disadvantage

It is not particularly quick in use, but is fine for the production of occasional spools.

Hot Air Hub Pulling Flaring

This method is designed for working with tight fit liners, but with a small amount of additional tooling hot air hub pulling flaring can work with sliding fit liners.  It is the ideal method for a customer that wishes to manufacture a significant number of spools efficiently.

How it works

  1. The flaring operation is carried out by heating the PTFE liner directly using a hot air gun and special heating cones designed to provide the heat at the correct places.
  2. Once the liner is heated the flaring is undertaken first by using a hand held cone to push out the liner to around 45 degrees.
  3. Then a shaped tool is used, pulled into place using a hub puller mounted on the flange.

The key difference is that this method requires the PTFE to be pre-heated to its gel temperature, so requires the hot air equipment. The tooling is cold.

Advantage

This method is significantly quicker than the heated tool method and less subject to operator error.

Disadvantage

The equipment is more expensive and is only available as a complete set for 1″ to 4″ or 1″ to 6″NB.

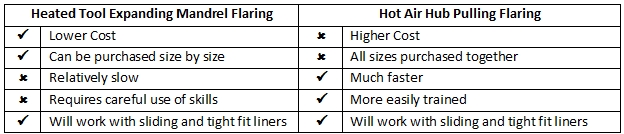

Summary of Advantages and Disadvantages of Flaring Methods

flare

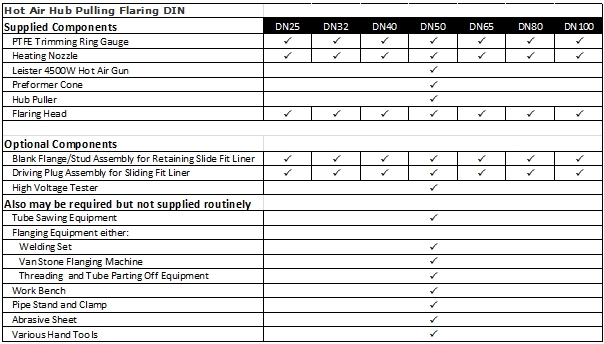

Equipment Provided

flare

flare

flare

flare

flare

Training

It is critical that operators are properly trained and CRP can offer either in house or on-site training for your construction teams to ensure the piping is installed correctly and safely on site.
