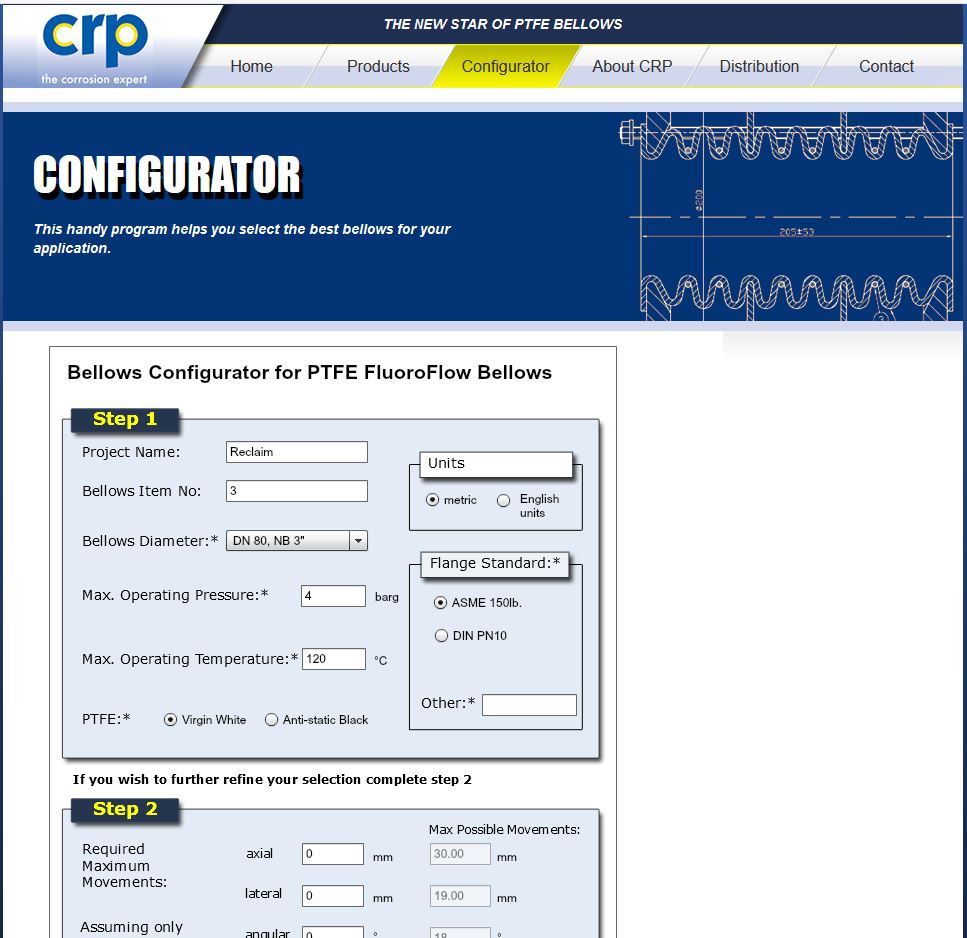

Online Bellows Configurator

Whilst our bellows catalog shows the allowable pressure, temperatures and movements, our online configurator offers an alternative.

The configurator provides 3 functions:

  • It helps with the selection of bellows based on the maximum temperatures and pressures.
  • Overall allowable movements can be calculated when combining axial, lateral and angular movements. This provides more specific confirmation of what bellows would be more suitable in a particular application.
  • It also allows you to select a particular nominal bore and convolution of bellows and confirm that this would be suitable for use in your application.

You can start the configurator by following this link

configurator
