CRP supply the Durco MG4 3 – Way Plug valve

The MG4 is a 3 way bottom entry metallic non lubricated plug valve. The valve has all the same features as the standard 2 way G4 plug valve. We can offer it in many variations of both plug and body materials. The large sealing areas of the PTFE sleeve offer positive shut off. The valve is ideal for slurry and other difficult processes.

The valve can be supplied in 6 different flow arrangements with both 90°and 180° rotation.

With 4 different plug choices the valve can be supplied to suit the process mixing / transflow operations. The MG4 is supplied with both flange and plug markings to clearly indicate the flows through the valve.

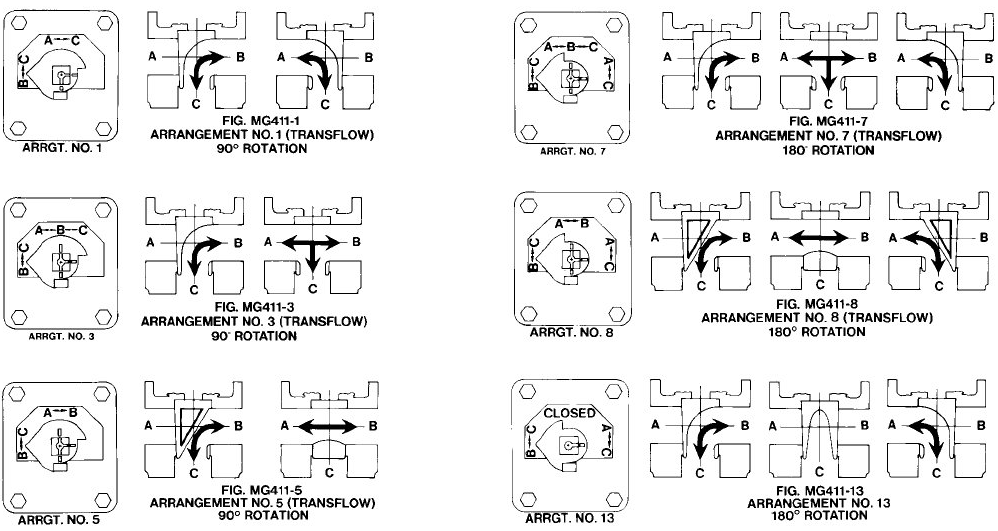

Flow Arrangements

MG4-flow-Arrangements



MG4 3 way plug valve
