Metallic Wafer Style Sampling Valve – SD IL 300 Sampling Systems, Inline Samplers

This inline sampling valve is designed to safely obtain a sample from a chemical process pipeline. It is a wafer pattern valve which can be supplied to bolt between ASME or DIN flanges.

It has a 316L stainless steel body and spindle as standard with PTFE and Chemraz FFKM seals. We can also provide the metallic parts in Hastelloy, Alloy 20, Super Duplex stainless steels etc to suit particular applications. These samplers are widely used by our customers to quickly and safely take a representative sample from their processes.

Representative sampling.
This liquid chemical sampler is usually supplied with a double action spring return handle which closes the valve automatically as soon as it’s released. Operation is very easy and the operator can quickly obtain a sample of product as it flows through the sampling valve. There are no product entrapment areas and so there is no need to pre-run any liquor through the valve beforehand, the operator for example just screws the bottle in place and operates the handle dispensing just the volume of sample they require whilst viewing the sample bottle filling, saving wastage and cost.

Easy operation
When the valve is operated by pulling the handle out and down, the spindle is lifted from its seat and allows the liquid flowing through the valve to flow into the sample bottle. The stem has a replaceable machined PTFE ring seal. The valve spindle travel is adjustable in commissioning so that the sample bottle fills in a controlled manner regardless of the pressure or viscosity of the process.

The inline sampler can also be remotely operated with a pneumatic actuator replacing the handle assembly, ideal for where operators have limited access or to combine with the plants distributed control system.

Universal mounting.
The SD-IL-300 sampler can be supplied to suit horizontal or vertical pipelines. The sample is normally dispensed into a sample bottle, in which case we machine the threads of the sample bottle connector to match the customers site standard of bottles. The sample bottle connector has a vent to prevent the bottle becoming pressurized and allow fumes to exit away from the operator. As a low cost option the sample can be dispensed through a PTFE tube into a hand held sample bottle.

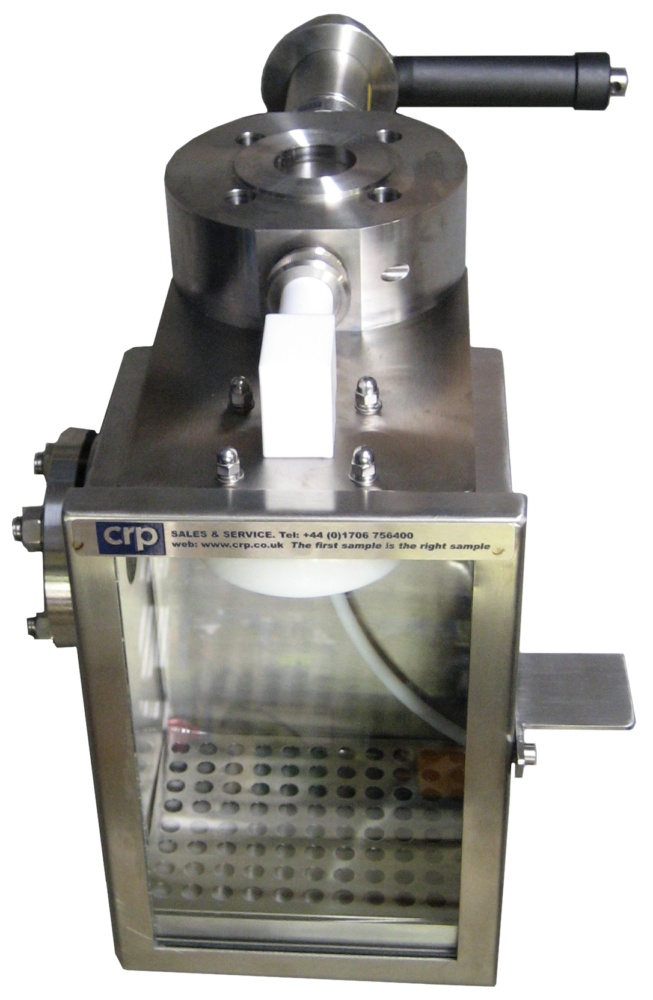

We would recommend that the bottle adaptor is contained within a safety cabinet to protect the bottle and operator. We offer a 0.11″ thick 316 stainless steel cabinet as standard, with a laminated glass door which can contain up to a 16 oz sample bottle.

The SD-IL-300 is suitable for use in processes up to 392°F at 232 PSI. We can also offer an ASME Class 300 body with a modified seal increasing the pressure rating to 348 PSI.

We can provide a wide range of modifications to our samplers, we can include heating jackets within the sampler body,  sampling into bags, sample coolers, bottle detection systems and so on.
